UI tests: Debug failures#

It can be difficult to debug failures in UI tests from the logs alone. Playwright offers a rich visual reporting interface that you can use to make this easier.

Download the test report#

1) Open the failed GitHub Actions run#

In your PR, at the very bottom of the “Conversation” tab, you can see failed checks. UI tests are part of the integration tests jobs. Look for failed jobs like:

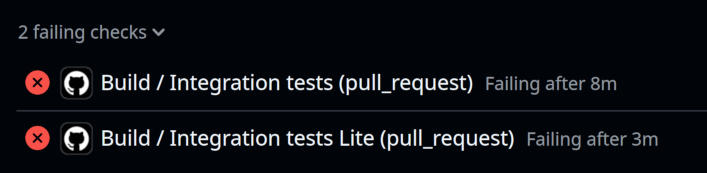

Failed integration tests in the Pull Requests UI

Click on one of these jobs, and you should be taken to the place in the job log where the failure occurred.

Close the currently open step (you should see a collapsible section header at the top of the screen, with a red X (❌) icon).

2) View the “Upload playwright test report” step#

The “Upload playwright test report” step will be downstream (below) the failed step. It should have a checkmark (✔️) icon.

Click the collapsible header to open it.

3) Download the test report#

At the bottom of the log for the “Upload playwright test report” step, you should see a line like:

Artifact download URL: https://github.com/geojupyter/jupytergis/actions/runs/{some number}/artifacts/{some other number}

Click on the URL to download the test report. Your browser will download a zip file named jupytergis-playwright-tests.zip.

4) Unzip the test report#

Hint

Before unzipping, you may want to move the zip file to a temporary folder, e.g. a new folder in /tmp if you’re using MacOS or Linux.

Unzip the file with your tool of choice. For example, on Linux:

unzip jupytergis-playwright-tests.zip

You should see a playwright-report and test-results directory are extracted.

Open the test report with Playwright#

From the directory where you unzipped, run:

pnpm dlx playwright show-report

…to download and execute the playwright report visualization tool. It will immediately open a new browser tab displaying the test report

Warning

Using npx may be significantly less safe than using pnpm dlx.

See Explanation: Security & NPM dependencies for more.

Working with the Playwright test report#

For more on using the test report, view the official Playwright docs page on HTML reports!
